Intueor LED in-grounds are robust, high performance luminaires designed for highlighting architectural or landscaping features.
The body is constructed from pure aluminium with two-step electrolytic anodizing and the bezel is machined from 316 Stainless Steel, ensuring an extremely high resistance to corrosion and peace of mind for long term exposure outdoors.
Operating at 12VDC, the Intueor in-grounds can be combined with our range of LED control modules or LED drivers supporting 0/1-10V, BLE, DALI, DMX & TRIAC dimming control.

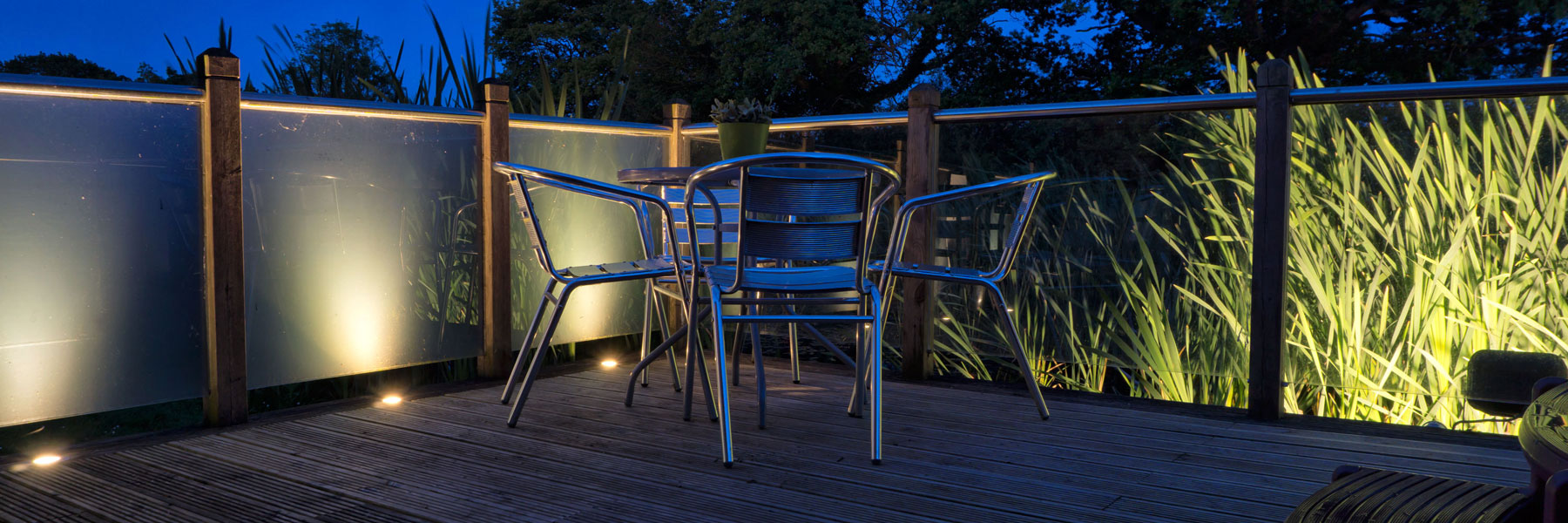

The Intueor in-ground is an unobtrusive solution for local interior or exterior architectural & landscaping illumination.
|
Product
Code |
Power |
Lumen
Output |
LED
Colours |
CRI |
Beam
Angle(s) |
IP
Rating |
Input
Voltage |
Input
Current |
Dimming |
Mounting
Type |
Diameter | cUTOUT | Weight | Warranty |
| ARC-SP-INT09 | 9W | 750lm |
2700K | 3000K | 4000K | 6000K
Red | Green | Blue |
≥80 | 10° | 23° | 38° | IP67 | 12VDC | 0.75A | CV |
Recessed: Direct
Recessed: Sleeve |
∅78mm |
∅64mm
∅68mm |
550g | 3 years |
