Stega LED in-grounds are mini recessed spotlights, also known as uplighters, suitable for internal or external, accent and pathway illumination applications.
Machined from 316 stainless steel, the body provides an IP67 ingress protection with exceptional corrosion resistance ensuring unimpaired longevity for exterior installations exposed to the elements.
Low voltage operation with remote driver, Stega LED in-grounds can be seamlessly installed into new or existing dimming systems supporting 0/1-10V, DALI, DMX or TRIAC protocols.

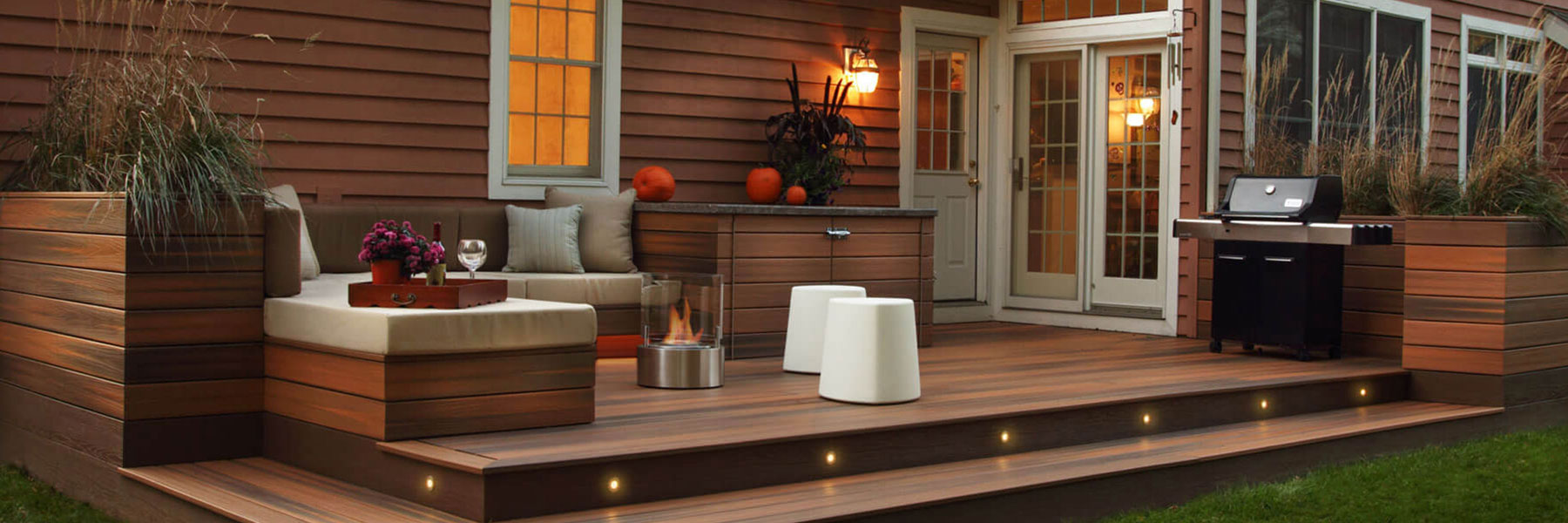

Stega's spring installation allows secure placement within a ground or vertical opening such as stair risers to accommodate plinth or step lighting demands.
Available in 3 sizes and with multiple beam options, the Stega is a great way to get creative and increase visual interest to interior or exterior architecture.
|
Product
Code |
Power |
Lumen
Output |
LED
Colours |
CRI |
Beam
Angle(s) |
IP
Rating |
Input
Voltage |
Input
Current |
Dimming |
Mounting
Type |
Diameter | cUTOUT | Weight | Warranty |
| ARC-IG-STE38 | 1.2W | 120lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 10° | 20° | 30° | IP67 | 2VDC | 600mA | CC |
Recessed: Direct
Recessed: Bucket |
∅38mm |
∅32mm
∅80mm |
230g | 3 years |
| ARC-IG-STE48 | 3W | 300lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 15° | 30° | 45° | 60° | IP67 | 5VDC | 600mA | CC |
Recessed: Direct
Recessed: Bucket |
∅48mm |
∅36mm
∅80mm |
250g | 3 years |
| ARC-IG-STE55 | 3W | 300lm |
2700K | 3000K | 4000K | 6000K
RGB |
≥80 | 15° | 30° | 45° | 60° | IP67 | 5VDC | 600mA | CC |
Recessed: Direct
Recessed: Bucket |
∅55mm |
∅36mm
∅80mm |
350g | 3 years |
