LED Neon

Product Overview

Features

- Philips branded LED's

- 24VDC operation

- Robust IK08 construction

- Suitable for indoor or outdoor use

- UV stabilized, flame resistant, saltwater resistant

- Completely uniform illumination

- 3 year warranty

Description

LED Neon is a safe, durable, long lasting alternative to conventional Neon.

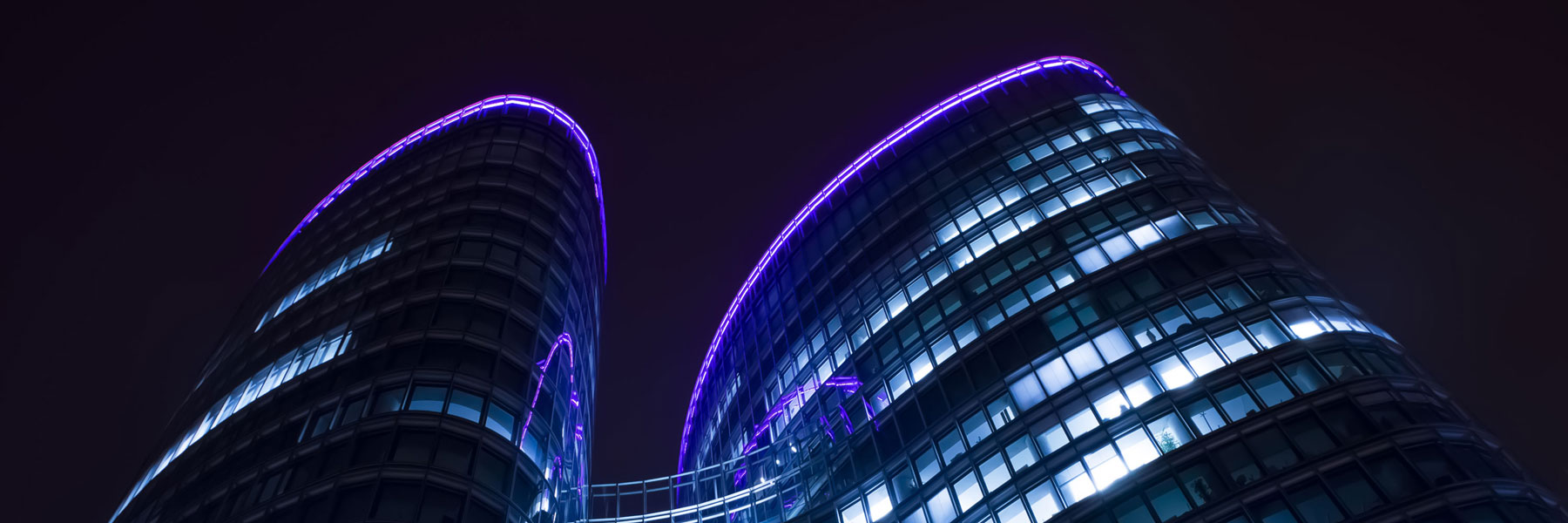

Typically used in the architectural or commercial industries to illuminate buildings, structures & retail spaces.

Operating at 24VDC, the 16x16mm can be operated upto 18m in a single length, to provide uninterrupted, uniform lighting.

16x16mm has a rounded illumination surface providing 160° output making it ideal for product concealed applications where vertical bending is required.

Options

Lengths:

Max: 18m - Single Colour
Max: 10m - Dynamic White
Max: 16m - RGB
Max: 9m - RGBW

Colours:

2700K

3000K

4000K

5700K

Dynamic
White

RGB

RGBW
3000K

RGBW
6000K

Beam Angle:

160°

Technical Specifications

Product Code	Power	Lumen Output	LED Colour	CRI	Beam Angle	IP Rating	Bend Direction	Input Voltage	Dimensions	Cut Increments	Max Length Single End	Max Length Double End	Weight	Warranty
ARC-NE-1616V-57K	15.5W/m	925lm/m	5700K	≥90	160°	IP65 \| IP67	Z	24VDC	16x16mm	55.5mm	9m	18m	500g/m	3 years
ARC-NE-1616V-40K	15.5W/m	840lm/m	4000K	≥90	160°	IP65 \| IP67	Z	24VDC	16x16mm	55.5mm	9m	18m	500g/m	3 years
ARC-NE-1616V-30K	15.5W/m	800lm/m	4000K	≥90	160°	IP65 \| IP67	Z	24VDC	16x16mm	55.5mm	9m	18m	500g/m	3 years
ARC-NE-1616V-27K	15.5W/m	760lm/m	2700K	≥90	160°	IP65 \| IP67	Z	24VDC	16x16mm	55.5mm	9m	18m	500g/m	3 years
ARC-NE-1616-DW	22W/m	-	3000K - 6000K Adjustable	≥90	160°	IP65 \| IP67	Z	24VDC	16x16mm	55.5mm	5m	10m	500g/m	3 years
ARC-NE-1616-RGB	14W/m	-	RGB	≥90	160°	IP65 \| IP67	Z	24VDC	16x16mm	83.34mm	8m / 7m (Injection Moulded)	16m / 14m (Injection Moulded)	500g/m	3 years
ARC-NE-1616-RGBW	19.5W/m	-	RGBW	≥90	160°	IP65 \| IP67	Z	24VDC	16x16mm	71.4mm	6m	9m	500g/m	3 years
