DMX LED Node is a low voltage, fully controllable, IP65 pixel used to create large scale sequenced lighting effects.
6 TRI coloured LED's are housed within each unit, diffused with a custom PVC material to develop a solid "dome" of colour.
On-board auto addressing DMX module and input/output locking connections make installation/setup quick and easy.

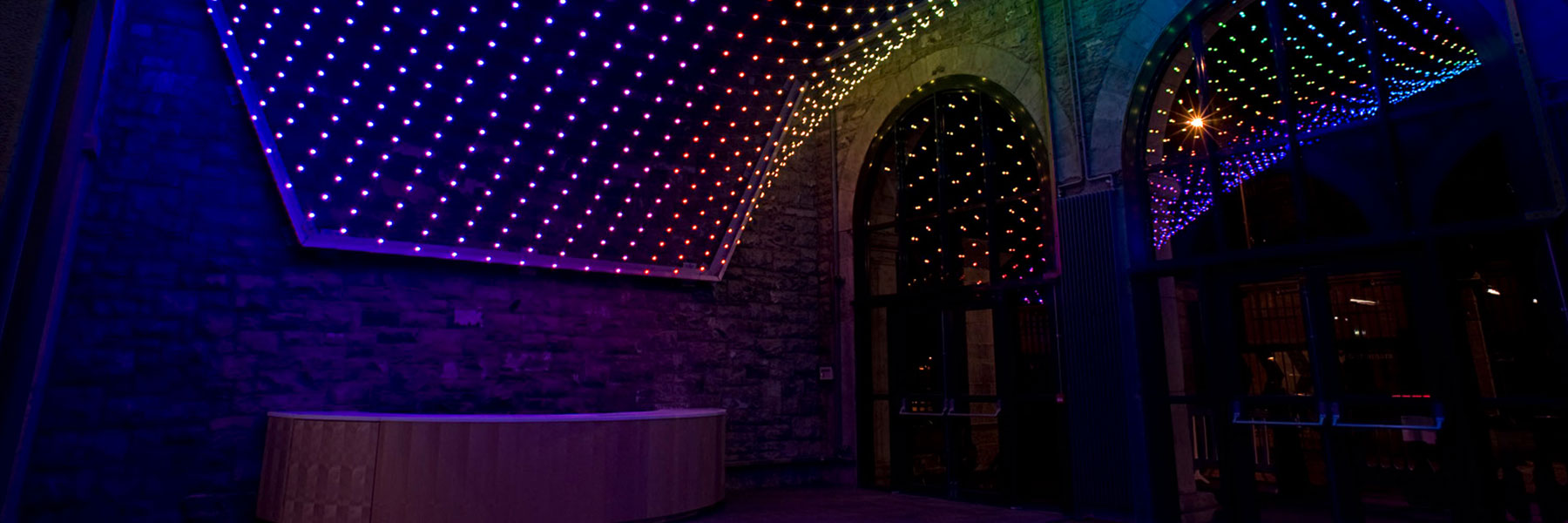

The DMX LED Node is ideal for facade video displays, bridges, events, pathways & landscaping.
|
Product
Code |
Power |
Lumen
Output |
LED
Colours |
CRI |
Beam
Angle(s) |
LED
Quantity |
IP
Rating |
Input
Voltage |
Input
Current |
Dimensions |
Mounting
Type |
Weight | Warranty |
| ARC-NO-CL103-DM | 3W | 240lm |
2700K | 4000K | 6000K
Red | Green | Blue | Amber |
≥80 | 120° | 6 | IP65 | 24VDC | 0.125A | ∅50mm | Surface | 0.15kg | 3 years |
| ARC-NO-CL103-DM | 3W | - | RGB | - | 120° |
6
(TRI) |
IP65 | 24VDC |
0.04A/
channel |
∅50mm | Surface | 0.15kg | 3 years |
