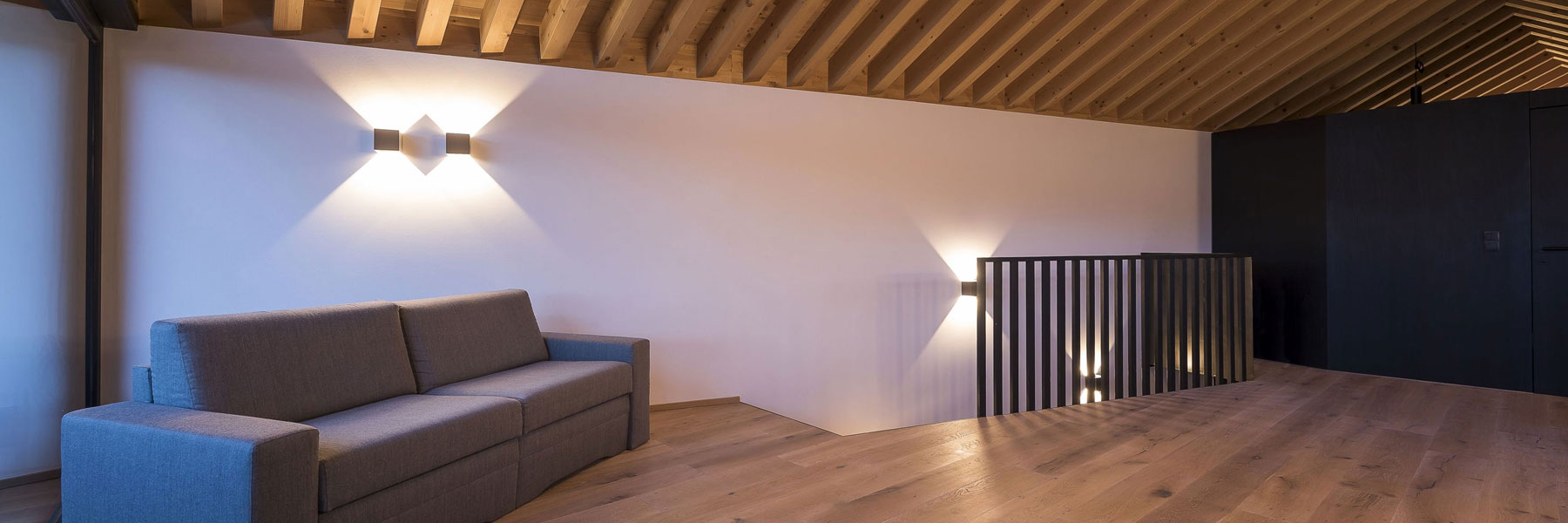

Caspa LED wall lights deliver a decorative, up/down illumination solution for corridor or wall applications both indoors & out.
Available in black or white, the body is manufactured from aluminium and finished with an architectural powder coating, providing corrosion resistance in a minimalist, modern design.
Low voltage operation, the Caspa can easily be integrated into existing dimming circuits with our range of 0/1-10V, DALI, DMX & TRIAC dimming LED drivers & control modules. Integrated switching driver options allow direct replacement of luminaires on non-dimming circuits.
Precision cut facias control the light output to deliver various lighting effects for decorative applications.
|
Product
Code |
Power |
Lumen
Output |
LED
Colours |
CRI |
Beam
Angle(s) |
LED
Quantity |
IP
Rating |
Input
Voltage |
Input
Current |
Dimensions |
Mounting
Type |
Weight | Warranty |
| COM-WL-CAS6A | 3W | 285lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 8° | 1 | IP65 | 10VDC | 300mA | 130mm | Surface | 1.25kg | 3 years |
| COM-WL-CAS6B | 6W | 570lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 8° | 2 | IP65 | 20VDC | 300mA | 130mm | Surface | 1.25kg | 3 years |
| COM-WL-CAS6C | 12W | 1,140lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 8° | 4 | IP65 | 40VDC | 300mA | 130mm | Surface | 1.25kg | 3 years |
| COM-WL-CAS6D | 6W | 495lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 80° | 2 | IP65 | 20VDC | 300mA | 130mm | Surface | 1.25kg | 3 years |
| COM-WL-CAS6E | 6W | 495lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 90° | 2 | IP65 | 20VDC | 300mA | 130mm | Surface | 1.25kg | 3 years |
| COM-WL-CAS6F | 6W | 495lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 60° | 2 | IP65 | 20VDC | 300mA | 130mm | Surface | 1.25kg | 3 years |
| COM-WL-CAS6G | 6W | 495lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 8° | 2 | IP65 | 20VDC | 300mA | 130mm | Surface | 1.25kg | 3 years |
| COM-WL-CAS6H | 6W | 495lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 60° / 8° | 2 | IP65 | 20VDC | 300mA | 130mm | Surface | 1.25kg | 3 years |
| COM-WL-CAS6I | 6W | 495lm | 2700K | 3000K | 4000K | 6000K | ≥80 | 8° | 2 | IP65 | 20VDC | 300mA | 130mm | Surface | 1.25kg | 3 years |
