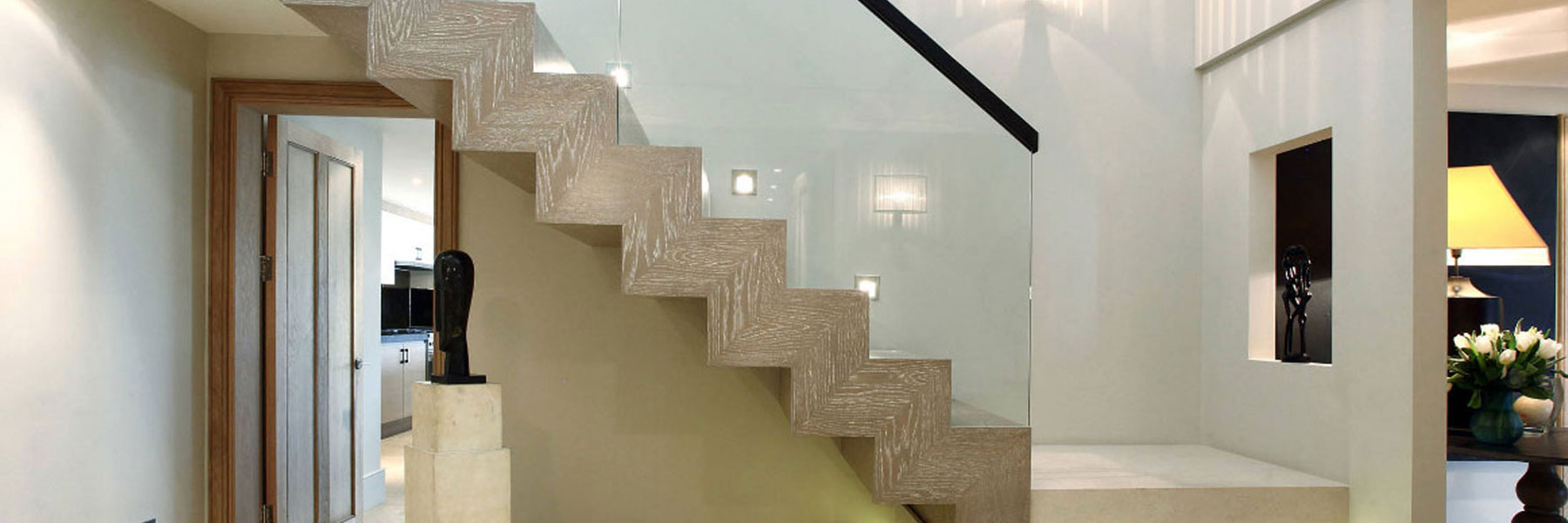

Do look down. Draw attention to the ground by increasing visual awareness at low level to walkways, carports or stairways with Gradus LED wall & step lights.
Recessed design with high gloss white finish, the body is manufactured from aluminium to ensure excellent thermal conductivity and a sleek appearance.
Typically mounted at around 300mm from the ground plane, Gradus LED wall lights utilize a high specular reflector and tempered glass to ensure a uniform, comfortable visual experience for pathway, corridor or stair illumination.
Available in 3 sizes, Gradus LED wall lights are a favourable & convenient solution for low level lighting applications.
|
Product
Code |
Power |
Lumen
Output |
LED
Colours |
CRI |
Beam
Angle(s) |
IP
Rating |
Input
Voltage |
Input
Current |
Dimming |
Mounting
Type |
Dimensions | Cutout | Weight | Warranty |
| COM-WL-GRA070 | 3W | 220lm | 3000K | 4000K | 5000K | 5700K | ≥80 | 60° | IP54 | 12VDC | 250mA | CC | Recessed | 70 x 70mm | 60 x 60mm | 220g | 3 years |
| COM-WL-GRA110 | 3W | 220lm | 3000K | 4000K | 5000K | 5700K | ≥80 | 60° | IP54 | 12VDC | 250mA | CC | Recessed | 70 x 110mm | 60 x 100mm | 300g | 3 years |
| COM-WL-GRA200 | 3W | 220lm | 3000K | 4000K | 5000K | 5700K | ≥80 | 60° | IP54 | 12VDC | 250mA | CC | Recessed | 70 x 200mm | 60 x 190mm | 450g | 3 years |
| COM-WL-GRA070-SW | 3W | 220lm | 3000K | 4000K | 5000K | 5700K | ≥80 | 60° | IP54 | 85-265VAC | - | - | Recessed | 70 x 70mm | 60 x 60mm | 220g | 3 years |
| COM-WL-GRA110-SW | 3W | 220lm | 3000K | 4000K | 5000K | 5700K | ≥80 | 60° | IP54 | 85-265VAC | - | - | Recessed | 70 x 110mm | 60 x 100mm | 300g | 3 years |
| COM-WL-GRA200-SW | 3W | 220lm | 3000K | 4000K | 5000K | 5700K | ≥80 | 60° | IP54 | 85-265VAC | - | - | Recessed | 70 x 200mm | 60 x 190mm | 450g | 3 years |
